Product Details

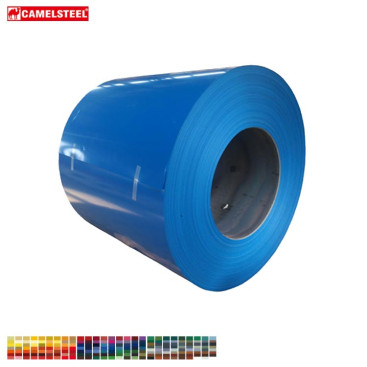

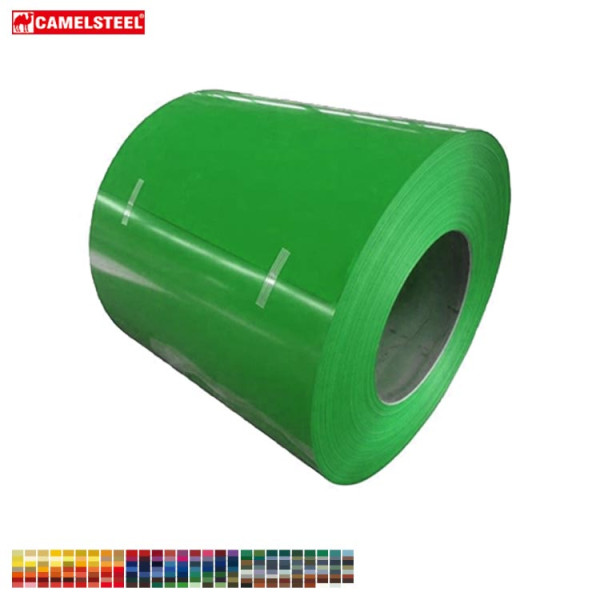

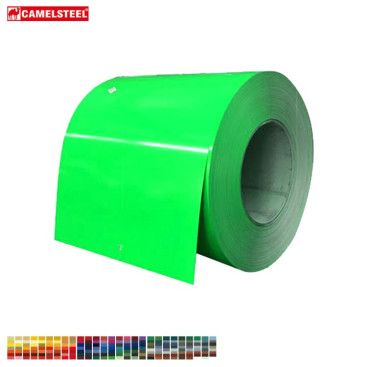

Color-coated aluminum-zinc plating is made of aluminum-zinc-coated steel sheet (55% aluminum, 43.5% zinc and 1.5% silicon) with more corrosion resistance than galvanized as the substrate after surface degreasing, phosphating, and chelate treatment. Products made from organic coatings that have been baked.
Specifications
| Standard | GB/T-12754,JIS G 3312,EN 10169,ASTM A755 | Grade | CGCC,TDC51D+Z |
| Thickness | 0.12-1.5 mm (±0.02 mm) | Width | 30-1250 mm (±2 mm) |
| Length | Coil or as Customers’ requirement | Zinc/Aluzinc coating | Alu-zinc 40-150 g/sm |
| Coil weight | 3-5 tons or As your requirement | Hardness | CQ/FH/As your requirement (G 300-G 550) |
| Painting | prime -5 μm,top coating -7–20 μm | Back coating | 7 –15 μm |
| Color | As RAL or your requirement | Certification | ISO9001,BV,SGS,etc. |
| Surface Treatment | With plastic film,Chromated,Wrinkle,Matt,Decorate, Sand surface,Highlight | Application | Structural use,roofing,corrugated roofing,commercial use, household appliance,industry,etc. |
